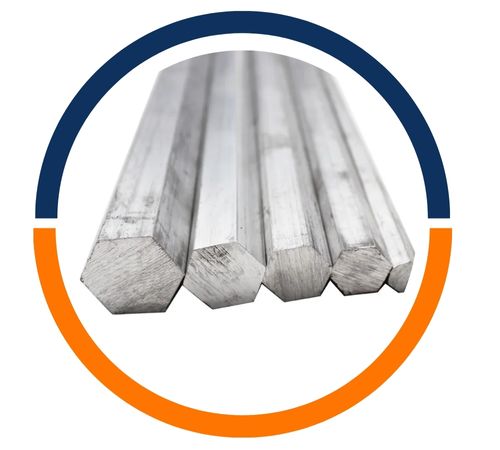

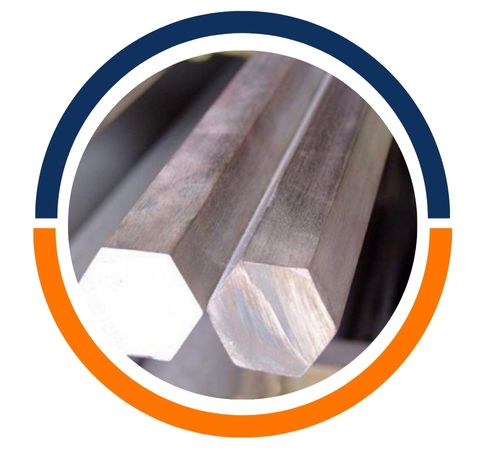

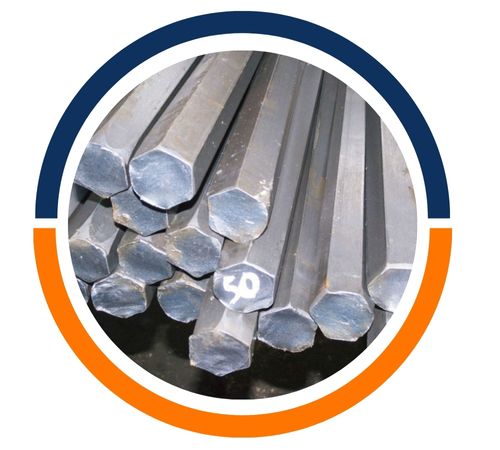

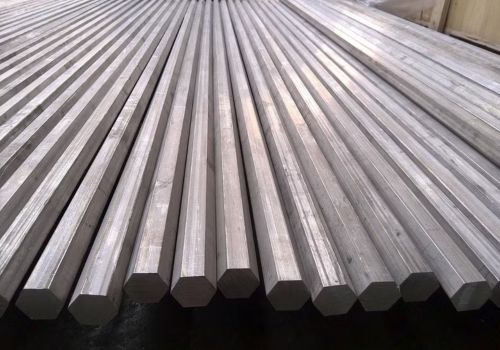

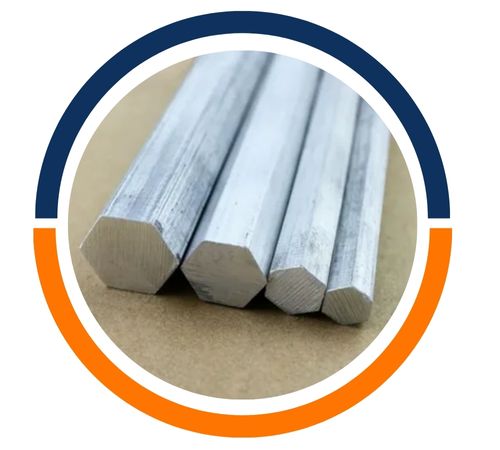

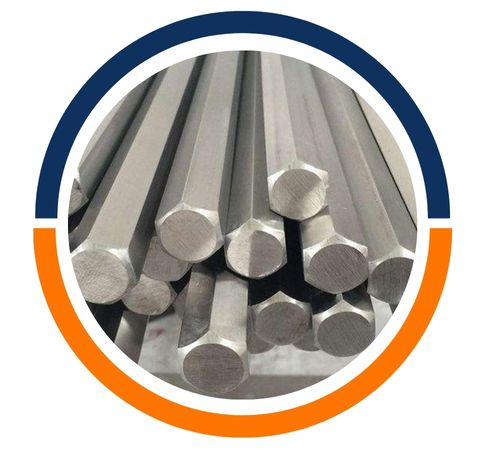

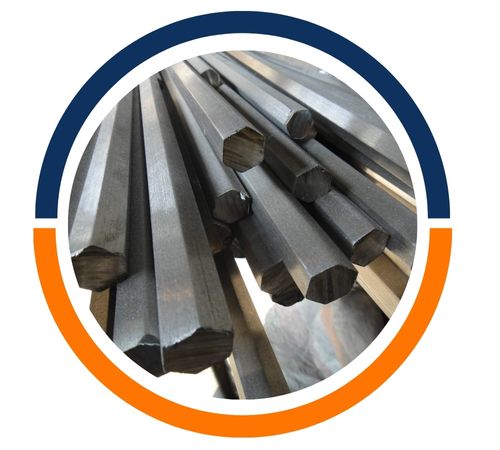

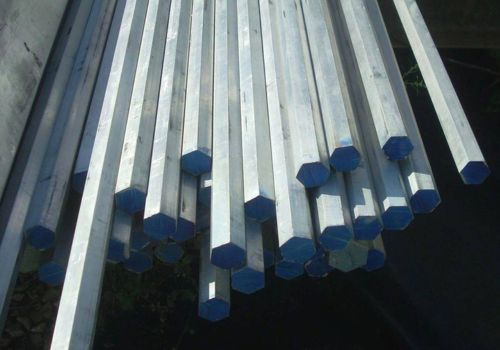

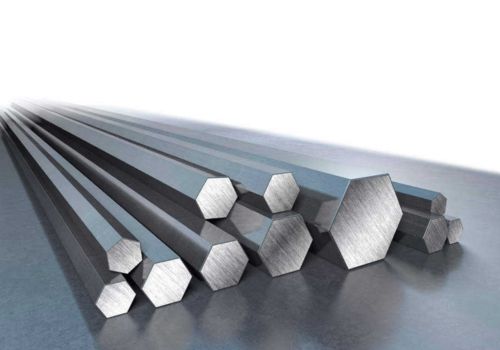

Zampa Aluminium, located in Canberra, Australia, stands out as a top-notch manufacturer and supplier of high-quality aluminium products. One of their flagship offerings is the Aluminium 2014 Hex Bars, which are celebrated for their exceptional strength and durability. These bars are meticulously crafted to adhere to strict industrial standards, ensuring they perform reliably in critical applications. With a strong focus on quality and customer satisfaction, Zampa Aluminium has earned a reputation as a trusted provider of aluminium hex bars that cater to a wide range of industrial needs throughout Australia.
Aluminium 2014 hex bars are primarily made from an aluminium alloy that includes about 4-5% copper, which significantly boosts their strength. This alloy also features trace amounts of magnesium, manganese, and silicon, enhancing its hardness and resistance to corrosion. In terms of mechanical properties, Aluminium 2014 boasts high tensile strength (around 400-470 MPa) and impressive fatigue resistance. While it offers good machinability, its moderate corrosion resistance often necessitates protective coatings. The blend of strength and workability makes this material perfect for demanding structural applications.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Aluminium 2014 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.7 | 0.50 – 1.20 | 0.2 – 0.8 | 0.4 – 1.2 | 3.9 – 5.0 | 0.25 | 0.15 | 93.5 |
| Material | Temper | Diameter (mm) | Tensile Strength min ((N/mm²) | Yield Strength (min) (N/mm²) | Elongation on 5.65 V (min) |
| 2014 Bar | T4 | <20 | 370 | 230 | 11 |
| 2014 Bar | T4 | 20-75 | 390 | 250 | 11 |
| 2014 Bar | T4 | 75-150 | 390 | 250 | 9 |
| 2014 Bar | T4 | 150-200 | 370 | 230 | 8 |
| 2014 Bar | T6510 | 20-75 | 480 | 435 | 7 |
| 2014 Bar | T6510 | 75-150 | 465 | 420 | 7 |
| 2014 Bar | T6510 | 150-200 | 435 | 390 | 7 |
Density : 2.8 g/cm3
Melting point : 510°C (950°F)
Tensile Strength : 414 MPa – 60000 psi
| STANDARD | UNS | WERKSTOFF NR. | European Standard | BS (OLD) | ISO | USA (AA) | GERMANY (DIN) | IS | Canadian |
| Aluminium 2014 | A92014 | 3.1255 | EN AW-2014 | HE15 | AlCu4SiMg | 2014 | AlCuSiMn | 24345 | B26S |
Zampa Aluminium based in Canberra, Australia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 2014 Hex Bars to meet specific project needs. Our team at Zampa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@zampaaluminium.com
These Aluminium 2014 hex bars are extensively utilized in the aerospace, automotive, and military sectors, thanks to their outstanding strength-to-weight ratio. Their durability makes them ideal for constructing aircraft structures, truck frames, and components for heavy machinery. Moreover, these hex bars are also employed in precision engineering, tooling, and molds, where both durability and machining accuracy are crucial. Zampa Aluminium’s 2014 hex bars are particularly favored in situations where structural integrity and performance under stress are essential, making them vital for high-performance engineering projects.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
