Aluminium 1060 Sheets and Plates manufacturer in Australia

Aluminium 1060 Sheets Dealer in Melbourne, Alumnium 1060 Hot Rolled (HR) Sheet and Plates Supplier in Melbourne, Al 1060 Sheets in Sydney, Aluminium Alloy 1060 Plates Size Chart, Alumnium 1060 Sheet Price in Brisbane, Aluminium 1060 Cold Rolled (CR) Sheet Supplier in Australia, Aluminium 1060 Sheet Stockist in Adelaide, Aluminium 1060 Sheets and Plates Exporter in Australia, Al 1060 Sheet Stockist in Canberra, Alumnium Alloy 1060 Plates Supplier in Adelaide

Zampa Aluminium is a reputable manufacturer and supplier located in Canberra, Australia, specializing in top-notch Aluminium 1060 Sheets and Plates. With a strong dedication to quality, Zampa Aluminium is known for delivering products that excel in purity, performance, and durability. Aluminium 1060, which boasts a remarkable 99.6% aluminium content, is highly regarded for its impressive corrosion resistance, excellent thermal and electrical conductivity, and outstanding workability. Zampa Aluminium prioritizes precision engineering and rigorous quality control, making them a dependable partner for various industries, from construction to electrical. Customers all over Australia rely on Zampa Aluminium for prompt delivery and exceptional product quality.

Aluminium 1060 Sheets and Plates consist of about 99.6% pure aluminium, along with trace amounts of elements like iron, silicon, copper, and zinc. This high level of purity leads to remarkable corrosion resistance, especially in chemical and marine settings. The mechanical properties include a tensile strength ranging from 55 to 95 MPa and a yield strength of around 20 MPa, making it suitable for cold working, though it may not be the best choice for high-stress applications. Aluminium 1060 also offers excellent electrical conductivity (over 55% IACS) and superior thermal conductivity. Its softness and ductility make it easy to shape, weld, and machine.

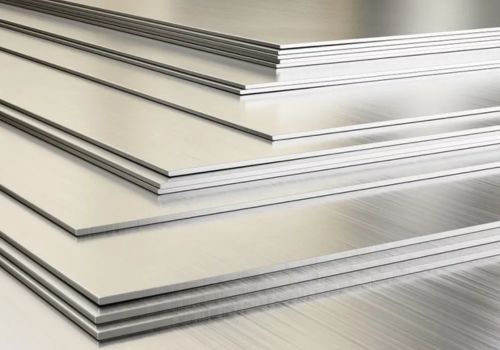

Aluminium 1060 Alloy Sheets

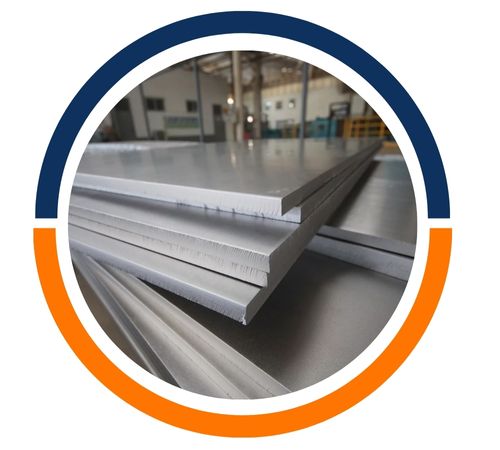

Aluminium 1060 Hot Rolled Sheets

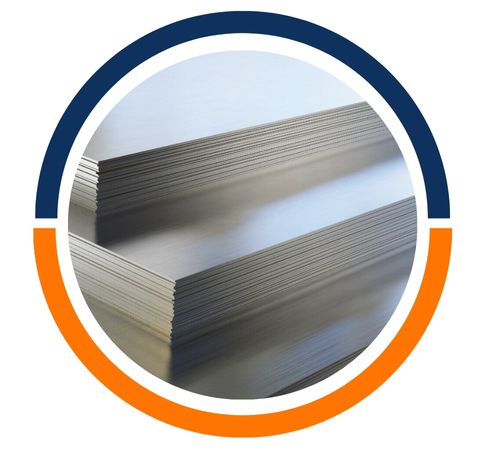

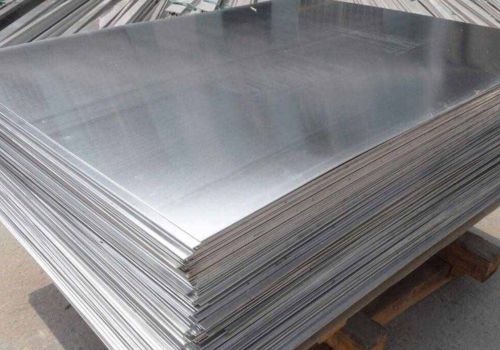

Aluminum 1060 Cold Rolled Sheets

Aluminium 1060 Clad Sheets Distributor in Australia, Al 1060 Perforated Plates Supplier in Canberra, Aluminium Alloy 1060 Sheet Weight Chart, Al 1060 Plates Exporter in Adelaide, Alumnium 1060 Polished Sheets Manufacturer in Melbourne, Aluminium 1060 Shim Sheet and Plate Price List in Australia, Aluminium 1060 Chequered Plates Sizes in mm, Alumnium Alloy 1060 Hot Rolled Plate Distributor in Sydney, Al 1060 Sheets and Plates Brisbane

Specifications of Aluminium 1060 Sheets and Plates

Standards	ASTM B209 / ASME SB209
Temper	O,H12,H14,H16,H18,H19,H22,H24
Thickness	0.2-50
Width	100-2600
Length	500-10000
Surface	Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish	Mill, Customer specific finish
Aluminum Sheet/ Plate Coating	PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type	Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 1060 Sheets and Plates

Aluminium 1060	Fe	Si	Mg	Mn	Cu	Zn	Ti	Al
Aluminium 1060	0.15 – 0.20	0.10 – 0.15	0.01 – 0.03	0.01 – 0.03	0.01 – 0.05	0.01 – 0.03	0.020 – 0.030	99.60

Mechanical Properties of Aluminium 1060 Sheets and Plates

Alloy	Temper	UTS(Mpa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm -0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
1060	O	55	75	25	25	30
	H12	75	110	6	6	7
	H14	90	120	5	5	6
	H16	95	130	4	4	4
	H18	130	—	3	3	3

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 1060 Sheets and Plates

Largest Aluminium 1060 Sheets and Plates Manufacturer and Exporter in Canberra, Australia

Zampa Aluminium based in Canberra, Australia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 1060 Sheets and Plates

STANDARD	UNS
Aluminium 1060	A91060

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 1060 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 1060 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 1060 Sheets and Plates to meet specific project needs. Our team at Zampa Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@zampaaluminium.com

Uses of Aluminium 1060 Sheets and Plates

Aluminium 1060 Sheets and Plates find extensive use across various industries due to their excellent corrosion resistance and formability. In the electrical sector, they are favored for bus bars and conductors because of their high electrical conductivity. In construction, these sheets are utilized for roofing, cladding, and decorative panels. The food and chemical industries often use 1060 plates for storage tanks and process equipment due to their non-reactive properties. Additionally, they are perfect for signage, lighting reflectors, and automotive parts that don’t require high strength. Their lightweight nature and ease of fabrication make them ideal for custom engineering projects.
